Nespresso coffee capsule filling machine|coffee capsule filling machine price

< >

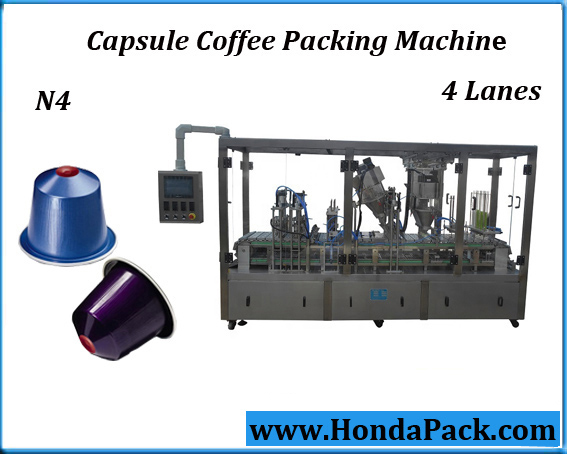

4 Lanes Nespresso coffee capsule filling machine

inquiry

This 4 Lanes Nespresso coffee capsule filling machine is for packing coffee capsule, compatible with coffee capsule like Nespresso, Dolce gusto, Lavazza blue or point, Pod, K-CUP, K-shot, OneCUP, and pack granule, powder and liquid materials such as coffee, milk powder, milk powder, tea, tea, instant powder, yogurt and other food materials.

Feature of 4 Lanes Nespresso coffee capsule filling machine:
1.Automatically accomplish all production process.small volume, operate easily.
2.PLC control system and full display and real-time monitoring.
3.Automatically load cup.
4.Automatically vacuum suck and convey materials.
5.Servo control auger filling.
6.Filling liquid system(various flavor).
7.Automatically suck capsule rim remaining powder.
8.UV germicidal lamp (option).
9.Automatically suck and place lid.
10.Filling nitrogen system,nitrogen flush process from empty capsule to heat seal station.
11.Automatically heat seal, Line seal and flat seal.
12.Automatically output finished products.
13.Automatically reject unqualified product.
14.Automatically count capsule quantity on conveyor belt；Sensor detect empty cups loading position, no cups and alarm.
15.No cup ,no filling,no seal, if empty cup in the mould, automatically start reject function,recycle it.
16.Automatically detect lids quantity, below a certain position, alarm and inform add lids.
17.Machine mainframe adopts food standard stainless steel,Organic glass door design ,Beautiful appearance ,high safety,
18.Automatically count finished products.
19.Failure tips display on the touchscreen.

Product Parameter of 4 Lanes Nespresso coffee capsule filling machine:

Model	N4 (Roll foil or Cutting lid)	N2
Filling weight range	0-20g(Option)	0-20g(Option)
Filling accuracy	±0.05~ 0.15g	±0.05~ 0.15g
Speed	80-130(Cups/minute)	160－240(Cups/minute)
Hopper capacity	2.5L- 110L Option	2.5L-110LOption
Control system	PLC(OMRON ,SCHNEIDER,ROCKWELL)	PLC(MRON ,SCHNEIDER,ROCKWELL)
Dispalyer	10 Inch touchscreen	10 Inch touchscreen
Power supply	AC220V/380V 50Hz/60Hz	AC220V/380V 50Hz/60Hz
Dimension	3720(L)1200(W)2150(H)mm+1750(L)1200(W)2150(H)mm	4880(L)×1000(W)×2100(H)mm
Weight	1150kg	960kg
Gross Weight	1250kg	1000kg

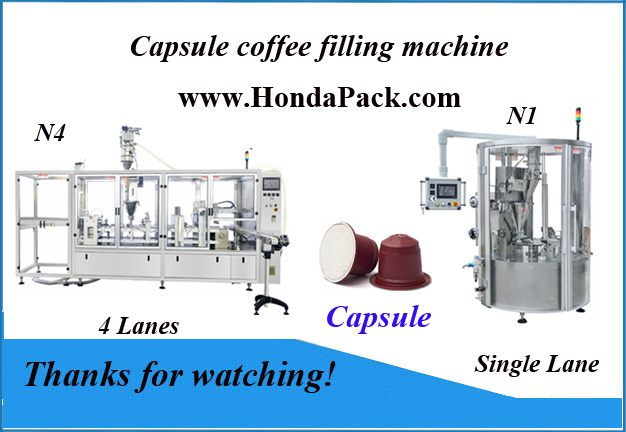

Automatic coffee capsule filling and sealing machine Video - Model N4 (With Outer Box):
