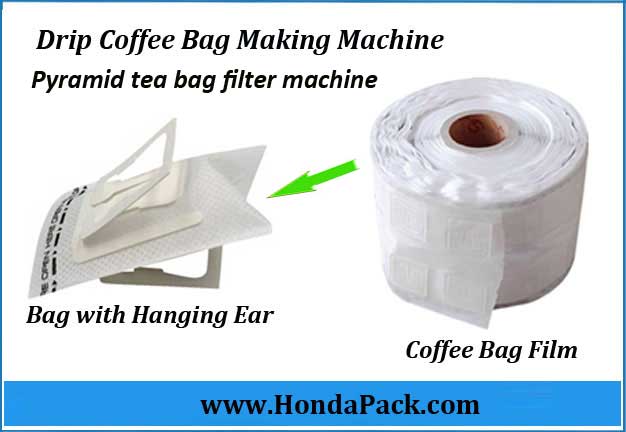

Making machine for empty drip coffee bag & Pyramid tea bag

Making machine for empty drip coffee bag filter for pour over coffee, pyramid tea bag filter for home brew!

Equipment Introduction
Name	Empty drip coffee bag making machine
Function	Making empty drip coffee bag filter, sealing empty Pla pyramid tea bag with thread and tag, triangle tea bag.
Technology	Adopt the ultrasonic wave sealing technology, instead of heat sealing, making sure the perfect sealing effect.
Bag size	9074mm for drip coffee bag; 7063mm for pyramid tea bag
Speed	60 bags per minute
Power	220V, single phase, 2.5 kW

Empty drip coffee bag making machine technical indicators and standards:
Automatic making machine for empty drip coffee bag and Pyramid tea bag

Automatic making machine for empty drip coffee bag and Pyramid tea bag

The packing machine should adapt to the technical indicators of non-woven fabric for drip coffee bag in two aspects, one is the filtration characteristics of non-woven fabric, and the other is physical properties. Filtration characteristics include air permeability, air resistance, maximum pore size, and average pore size. Physical properties include basis weight, thickness, stiffness, corrugation depth, burst resistance, resin content, etc.

1. Quantitative: Refers to the mass of non woven filter paper per square meter, unit: g/m².
2. Thickness: refers to the thickness of non woven fabric for drip coffee bag, excluding corrugation depth. Unit: mm.
3. Air resistance: The resistance of the filter paper to the flow of air. It is represented by the pressure drop value obtained by passing 85 liters of air through a filter paper of 100 cm2 in one minute. The unit is mbar. or the height of the water column (mm).
4. Corrugation depth: the groove depth pressed to strengthen the longitudinal stiffness of the non woven fabric for drip coffee bag, the unit is mm. In general, its value is 0.2mm.
5. Air permeability: the amount of air passing through the filter paper per unit time under a certain area and a certain pressure (20 mm water column). The unit is: L/m2 s.
6. Nominal Filtration Accuracy: Refers to the ability of non woven fabric for drip coffee bag to retain particles of a certain size, and the particle size of tiny spheres that can retain or filter out 50% shall prevail. Unit: μm.
7. Maximum pore size: the pore size calculated from the pressure when the first bubble emerges from the non-woven fabri sample during the test. Unit: μm.
8. Average pore size: The pore size calculated from the pressure of "dense" bubbling is called the average pore size. The unit is: μm.
9. Resin content: the percentage of resin in the weight of the filter paper. Generally 10%~30%
10. Stiffness: the ability of non-woven fabri to resist deformation. Unit: mg.
11. Burst resistance: the maximum pressure that non-woven fabri can withstand per unit area. Unit: kPa.

Why market need empty drip coffee bag making machine:

Several points should be considered in the selection of non-woven fabric drip coffee filter:
1. Effective area The larger the effective area, that is, the larger the use area of the filter paper, the larger the dust holding capacity, the smaller the resistance, and the longer the service life.
2. The finer the fiber diameter, the better the interception effect and the correspondingly higher filtration efficiency.
3. Binder content in the filter material High binder content means high tensile strength of the paper, high filtration efficiency, less lint shedding, low background dust accumulation and good resistance, but the resistance increases accordingly.

1. Pour over drip coffee filter is new coffee brewing methods, better than V60 filter paper.
2. Small business starts in beginning, empty drip coffee bag is widely used for hand sealing.

Empty drip coffee bag making machine is Multi-function and purpose: Not only it can make the drip coffee bag, but also make the pyramid tea bag.

Who need automatic making machine for empty drip coffee bag filter and pyramid tea bag filter: Distributor, packing material supplier and manufacturer company, dealer, the business owner from Amazon, Ebay, shopee run online business and have the coffee an tea filter for sale:

Products 1: Portable coffee filter paper bag for Single Serve
Pack: 50Pcs each packet
Materials: 100% Biodegrade Food grade non woven fabric Material from Japan
Feature: The hanging ear design makes it simple to use and convenient to make a good tasting coffee in less than 5 minutes.
Marketing advangage: Convenient for travel, camping, home, office

Products 2: Empty nylon pyramid tea filter bags for Loose Tea
Pack: 100 piece each pouch
Materials: 100% food-grade mesh nylon or pla corn fiber
Marketing advangage: Steeping all types of tea, including black tea, oolong tea, green tea, chai, chamomile and other herbal tea too in tea cup for brew

Here can see Youtube Video for automatic making machine for empty drip coffee bag filter and pyramid tea bag filter:

Thank you!

Jun-13-2023
