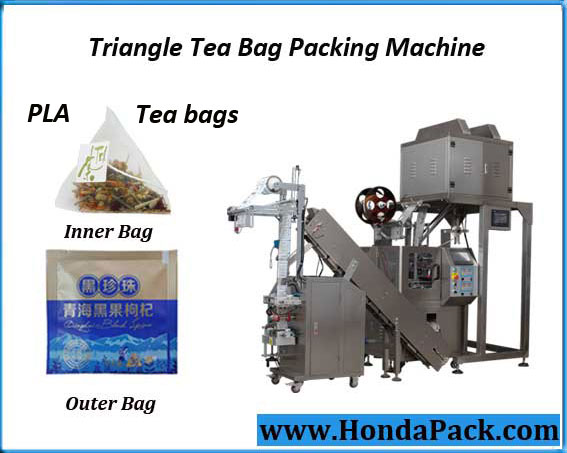

This automatic diabetic tea bag packaging machine with inner and outer envelope is suitable for inner pyramid bag with outer evelope, and for packing multi-material product such as Coffee Powder, loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.
Feature:
1 It can make inner and outer bag automatically, which would highly improve the working efficiency.
2 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
3 Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge,
avoiding any waste of packing material.
4 All parts in direct contact with products are made of SUS304 stainless steel,
ensuring reliable products output conforming to GMP standard.
5 The packing material of triangle bag is nylon, non-woven fabric material imported from japan,
and it is non-toxic, no bacteria, heat-resistant high quality food grade material.
6 The machine adopt ultrasonic sealing method, and it can seal tightly, safely,
and reduce the width of extra edge, avoiding any waste of packing material.
7 Optional devices: date printer.
Standard Technical Data
|
ype: |
Tea Bag Packing Machine Series |
|
Product model: |
H21DX |
|
Product name: |
Automatic Pyramid Tea Bag Packing Machine with outer envelope |
|
Packing Material: |
Inner bag packing material: Pyramid tea bag; Triangle tea bag; Corn fiber pla mesh; Nylon mesh; Non-woven fabric; PET; 100% biodegradable and bio-compostable material. |
|
Filling range: |
1~10g/bag, accuracy:≦±0.1g/bag |
|
Filling method: |
Electric scale |
|
Packing roll width: |
140mm, 160mm, 180mm |
|
Sealing length: |
50, 60, 70, 80mm |
|
Outer bag size |
W: 80-100mm; L: 90-120mm |
|
Sealing method: |
Inner Pyramid Bag by ultrasonic sealing and cutting |
|
Bag type: |
Inner pyramid bag with outer envelope |
|
Quantity of sealing device: |
2 sets |
|
Packing speed: |
30-50 bags/min |
|
Motor Power: |
220V, 50HZ, 1.5KW |
|
Air supply: |
≧0.6Mpa (Can be equipped with air compressor) |
|
Weight: |
500KG |
|
Dimension: |
3000*900*2300mm(L*W*H) |
Nylon tea bag packing machine Video:
Pyramid tea bag packing machine Production Line video -Working:
