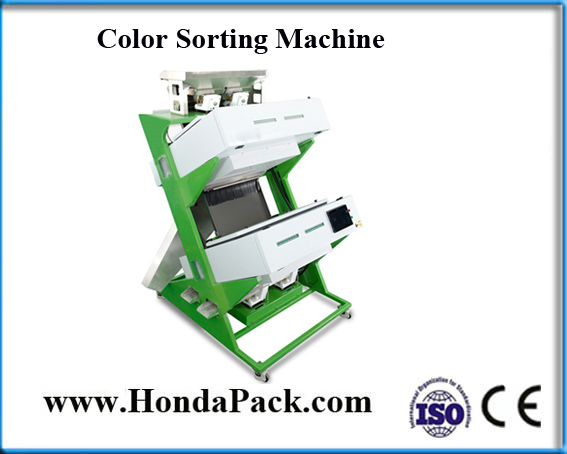

Tea sorting machine

Tea sorting machine is a kind of tool to sort the coffee bean, tea according to the size, color to select good qualty product from the bulk.

Technical parameter for Tea sorting machine:
Name:

Tea sorting machine

Function:

Tea sorting

Output Cpacity ( kg/h):

500- 800KG

Sorting Accuracy (%)

≥89 %
≥99 %

Production
capacity:

15-100KG per hour

Machine
standard:

Food grade and hygiene standards

Machine
body:

SUS304 stainless steel

Motor
power:

2.2Kw
Weight:
350KG

Overall
dimension:

1500 × 1700 × 2350 mm
How the tea sorting machine works?
When tea sifting machine is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Feature of tea sorting machine:
1. Color & shape sorting beyond Your Expectation!
<br>This tea sorting machine is a multi-purpose color sorter newly designed & developed with robust whole machine structure, stable sorting performance, consistent yield and ease of operatio, it is suitable for the sorting of various applicatio, such as rice, beans, nuts, seeds & grains, dried vegetables, plastic etc, for your wiser, smarter and superior sorting.

2. Qualified for higher sorting requirement.
Newly multi-core parallel processing system, able to sort based ocolor, shape, texture, edge distributioetc.
Smartly matching of intelligent sorting solutioand working synchronously, arithmetic speed & capacity greatly enhanced. Combinatioof Big-Date and super braiAI technology from various angles and spaces, to realize the self-learning of machine.

3. New generatioof software, more user-friendly.
Tailor-made RGB color CCD cameras, with 0.04mm detectable area, satisfying the premium sorting requirement; High resolutioand sensitivity industrial photograph sensor and super stable system desig, able to capture micro defects and ensure the consistent running.

4. Multi optical lighting system, whole view of sorting.
Newly designed optimized long-life cold LED intangibly lighting with  whole view intangible optical technology, enable shadow-less of materials and visible of small defect and spot. Easier for machine to identify and make judgment; sorting performance is highly enhanced Unique identificatiotechnology to make different defects, like glasses, stone, transparent plastic, visible and cabe rejected.
